HSS - E DIN 2183/C USA İnce Vidalı Helis Kanallı Makina Kılavuzu - UNF

Fiyat

0,00 TL + KDV

KDV Dahil

0,00 TL

{"vat":18,"m_o_p":0,"variant_ids":{"24818_0":"27953","24819_0":"27954","24820_0":"27955","24821_0":"27956","24822_0":"27957","24823_0":"27958","24824_0":"27959","24825_0":"27960","24826_0":"27961","24827_0":"27962"},"variant_prices":{"24818_0":"0","24819_0":"0","24820_0":"0","24821_0":"0","24822_0":"0","24823_0":"0","24824_0":"0","24825_0":"0","24826_0":"0","24827_0":"0"},"variant_price_raws":{"24818_0":0,"24819_0":0,"24820_0":0,"24821_0":0,"24822_0":0,"24823_0":0,"24824_0":0,"24825_0":0,"24826_0":0,"24827_0":0},"buying_prices":{"24818_0":"0","24819_0":"0","24820_0":"0","24821_0":"0","24822_0":"0","24823_0":"0","24824_0":"0","24825_0":"0","24826_0":"0","24827_0":"0"},"not_discounted_prices":{"24818_0":0,"24819_0":0,"24820_0":0,"24821_0":0,"24822_0":0,"24823_0":0,"24824_0":0,"24825_0":0,"24826_0":0,"24827_0":0},"variant_supplier_codes":{"24818_0":null,"24819_0":null,"24820_0":null,"24821_0":null,"24822_0":null,"24823_0":null,"24824_0":null,"24825_0":null,"24826_0":null,"24827_0":null},"active_ids":{"one_24818":["0"],"two_0":["24818","24819","24820","24821","24822","24823","24824","24825","24826","24827"],"one_24819":["0"],"one_24820":["0"],"one_24821":["0"],"one_24822":["0"],"one_24823":["0"],"one_24824":["0"],"one_24825":["0"],"one_24826":["0"],"one_24827":["0"]},"variant_informations":[],"variant_stocks":{"24818_0":"1000","24819_0":"1000","24820_0":"1000","24821_0":"1000","24822_0":"1000","24823_0":"1000","24824_0":"1000","24825_0":"1000","24826_0":"1000","24827_0":"1000"}}

Seçiniz

Adet:

Teklif Al

Planlanan Teslimat

1 - 5 İş Günü

Tavsiye Et Yorum Ekle Fiyat Alarmı Alışveriş Listeme Ekle

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Tavsiye Et
Resimler
Öneri Kutusu

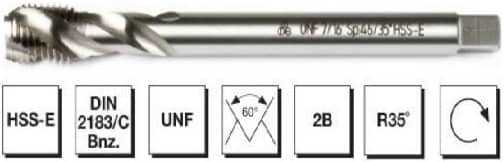

HSS - E DIN 2183/C USA İnce Vidalı Helis Kanallı Makina Kılavuzu - UNF

Ürün Kodu	d1 UNF	P adım G/Inch	L1 (mm)	L2 (mm)	d2 (mm)	k(h12) (mm)
B00105990014	1/4"	28	80	12	4,5	3,4
B00105990015	3/8"	24	100	16	7	5,5
B00105990023	7/16"	20	100	16	8	6,2
B00105990024	1/2"	20	110	20	9	7
B00105990025	9/16"	18	110	22	11	9
B00105990026	5/8"	18	110	22	12	9
B00105990032	3/4"	16	125	22	14	11
B00105990038	5/16"	24	90	14	6	4,9
B00105990051	7/8"	14	140	28	18	14,5
B00105990078	1"	12	160	32	20	16
