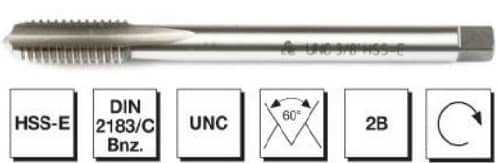

HSS - E DIN 2183/C USA Normal Vidalı Düz Kanallı Makina Kılavuzu - UNC

Fiyat

0,00 TL + KDV

KDV Dahil

0,00 TL

{"vat":18,"m_o_p":0,"variant_ids":{"24788_0":"27920","24789_0":"27921","24790_0":"27922","24791_0":"27923","24792_0":"27924","24793_0":"27925","24794_0":"27926","24795_0":"27927","24796_0":"27928","24797_0":"27929"},"variant_prices":{"24788_0":"0","24789_0":"0","24790_0":"0","24791_0":"0","24792_0":"0","24793_0":"0","24794_0":"0","24795_0":"0","24796_0":"0","24797_0":"0"},"variant_price_raws":{"24788_0":0,"24789_0":0,"24790_0":0,"24791_0":0,"24792_0":0,"24793_0":0,"24794_0":0,"24795_0":0,"24796_0":0,"24797_0":0},"buying_prices":{"24788_0":"0","24789_0":"0","24790_0":"0","24791_0":"0","24792_0":"0","24793_0":"0","24794_0":"0","24795_0":"0","24796_0":"0","24797_0":"0"},"not_discounted_prices":{"24788_0":0,"24789_0":0,"24790_0":0,"24791_0":0,"24792_0":0,"24793_0":0,"24794_0":0,"24795_0":0,"24796_0":0,"24797_0":0},"variant_supplier_codes":{"24788_0":null,"24789_0":null,"24790_0":null,"24791_0":null,"24792_0":null,"24793_0":null,"24794_0":null,"24795_0":null,"24796_0":null,"24797_0":null},"active_ids":{"one_24788":["0"],"two_0":["24788","24789","24790","24791","24792","24793","24794","24795","24796","24797"],"one_24789":["0"],"one_24790":["0"],"one_24791":["0"],"one_24792":["0"],"one_24793":["0"],"one_24794":["0"],"one_24795":["0"],"one_24796":["0"],"one_24797":["0"]},"variant_informations":[],"variant_stocks":{"24788_0":"1000","24789_0":"1000","24790_0":"1000","24791_0":"1000","24792_0":"1000","24793_0":"1000","24794_0":"1000","24795_0":"1000","24796_0":"1000","24797_0":"1000"}}

Seçiniz

Adet:

Teklif Al

Planlanan Teslimat

1 - 5 İş Günü

Tavsiye Et Yorum Ekle Fiyat Alarmı Alışveriş Listeme Ekle

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Tavsiye Et
Resimler
Öneri Kutusu

HSS - E DIN 2183/C USA Normal Vidalı Düz Kanallı Makina Kılavuzu - UNC

Ürün Kodu	d1 UNC	P adım G/Inch	L1 (mm)	L2 (mm)	d2 (mm)	k(h12) (mm)
B00105950635	1/4"	20	80	19	4,5	3,4
B00105950794	5/16"	18	90	22	6	4,9
B00105950952	3/8"	16	100	24	7	5,5
B00105951111	7/16"	14	100	24	8	6,2
B00105951270	1/2"	13	110	29	9	7
B00105951429	9/16"	12	110	30	11	9
B00105951587	5/8"	11	110	32	12	9
B00105951905	3/4"	10	125	34	14	11
B00105952222	7/8"	9	140	34	18	14,5
B00105952540	1"	8	160	38	20	16
