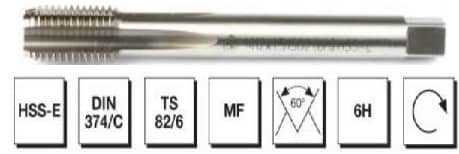

HSS - E DIN 374-C Metrik İnce Vidalı Düz Kanallı Makina Kılavuzu
| Ürün Kodu | d1 (mm) | P adım | L1 (mm) | L2 (mm) | d2 (mm) | k(h12) (mm) |
| B00105750403 | M4 | 0,5 | 63 | 10 | 2,8 | 2,1 |
| B00105750604 | M6 | 0,75 | 80 | 14 | 4,5 | 3,4 |
| B00105750805 | M8 | 1 | 90 | 22 | 6 | 4,9 |
| B00105751000 | M10 | 1,25 | 90 | 20 | 7 | 5,5 |
| B00105751005 | M10 | 1 | 90 | 20 | 7 | 5,5 |
| B00105751200 | M12 | 1,25 | 100 | 22 | 9 | 7 |
| B00105751205 | M12 | 1 | 100 | 22 | 9 | 7 |
| B00105751206 | M12 | 1,5 | 100 | 22 | 9 | 7 |
| B00105751400 | M14 | 1,25 | 100 | 22 | 11 | 9 |
| B00105751405 | M14 | 1 | 100 | 22 | 11 | 9 |
| B00105751406 | M14 | 1,5 | 100 | 22 | 11 | 9 |
| B00105751605 | M16 | 1 | 100 | 22 | 12 | 9 |
| B00105751606 | M16 | 1,5 | 100 | 22 | 12 | 9 |
| B00105751805 | M18 | 1 | 110 | 25 | 14 | 11 |
| B00105751806 | M18 | 1,5 | 110 | 25 | 14 | 11 |
| B00105751808 | M18 | 2 | 125 | 34 | 14 | 11 |
| B00105752005 | M20 | 1 | 125 | 25 | 16 | 12 |
| B00105752006 | M20 | 1,5 | 125 | 25 | 16 | 12 |
| B00105752008 | M20 | 2 | 140 | 34 | 16 | 12 |
| B00105752205 | M22 | 1 | 125 | 25 | 18 | 14,5 |
| B00105752206 | M22 | 1,5 | 125 | 25 | 18 | 14,5 |
| B00105752208 | M22 | 2 | 140 | 34 | 18 | 14,5 |
| B00105752405 | M24 | 1 | 140 | 28 | 18 | 14,5 |
| B00105752406 | M24 | 1,5 | 140 | 28 | 18 | 14,5 |
| B00105752408 | M24 | 2 | 140 | 28 | 18 | 14,5 |
| B00105752605 | M26 | 1 | 140 | 28 | 18 | 14,5 |
| B00105752606 | M26 | 1,5 | 140 | 28 | 18 | 14,5 |
| B00105752608 | M26 | 2 | 140 | 28 | 18 | 14,5 |
| B00105752706 | M27 | 1,5 | 140 | 28 | 20 | 16 |
| B00105752708 | M27 | 2 | 140 | 28 | 20 | 16 |
| B00105752806 | M28 | 1,5 | 140 | 28 | 20 | 16 |
| B00105752808 | M28 | 2 | 140 | 28 | 20 | 16 |
| B00105753006 | M30 | 1,5 | 150 | 28 | 22 | 18 |
| B00105753008 | M30 | 2 | 150 | 28 | 22 | 18 |
| B00105753206 | M32 | 1,5 | 150 | 28 | 22 | 18 |
| B00105753208 | M32 | 2 | 150 | 28 | 22 | 18 |
| B00105753306 | M33 | 1,5 | 160 | 30 | 25 | 20 |
| B00105753308 | M33 | 2 | 160 | 30 | 25 | 20 |
| B00105753606 | M36 | 1,5 | 170 | 30 | 28 | 22 |
| B00105753608 | M36 | 2 | 170 | 30 | 28 | 22 |
Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | 3522 |
