Alın Kamalı Malafa DIN 6357 (Form ADB) 2

Name: Alın Kamalı Malafa DIN 6357 (Form ADB) 2
Brand: Eroğlu
SKU: T1780
Availability: InStock

Fiyat

0,00 TL + KDV

KDV Dahil

0,00 TL

{"vat":18,"m_o_p":0,"variant_ids":{"29329_0":"18491","29334_0":"18492","29339_0":"18493","29327_0":"18490","29330_0":"18495","29335_0":"18496","29340_0":"18497","27928_0":"18494","29331_0":"18499","29336_0":"18500","29341_0":"18501","29325_0":"18498","29332_0":"18503","29337_0":"18504","29342_0":"18505","29326_0":"18502","29333_0":"18507","29338_0":"18508","29343_0":"18509","29328_0":"18506","29344_0":"18510","29345_0":"18511"},"variant_prices":{"29329_0":0,"29334_0":0,"29339_0":0,"29327_0":0,"29330_0":0,"29335_0":0,"29340_0":0,"27928_0":0,"29331_0":0,"29336_0":0,"29341_0":0,"29325_0":0,"29332_0":0,"29337_0":0,"29342_0":0,"29326_0":0,"29333_0":0,"29338_0":0,"29343_0":0,"29328_0":0,"29344_0":0,"29345_0":0},"variant_price_raws":{"29329_0":0,"29334_0":0,"29339_0":0,"29327_0":0,"29330_0":0,"29335_0":0,"29340_0":0,"27928_0":0,"29331_0":0,"29336_0":0,"29341_0":0,"29325_0":0,"29332_0":0,"29337_0":0,"29342_0":0,"29326_0":0,"29333_0":0,"29338_0":0,"29343_0":0,"29328_0":0,"29344_0":0,"29345_0":0},"buying_prices":{"29329_0":0,"29334_0":0,"29339_0":0,"29327_0":0,"29330_0":0,"29335_0":0,"29340_0":0,"27928_0":0,"29331_0":0,"29336_0":0,"29341_0":0,"29325_0":0,"29332_0":0,"29337_0":0,"29342_0":0,"29326_0":0,"29333_0":0,"29338_0":0,"29343_0":0,"29328_0":0,"29344_0":0,"29345_0":0},"not_discounted_prices":{"29329_0":0,"29334_0":0,"29339_0":0,"29327_0":0,"29330_0":0,"29335_0":0,"29340_0":0,"27928_0":0,"29331_0":0,"29336_0":0,"29341_0":0,"29325_0":0,"29332_0":0,"29337_0":0,"29342_0":0,"29326_0":0,"29333_0":0,"29338_0":0,"29343_0":0,"29328_0":0,"29344_0":0,"29345_0":0},"variant_supplier_codes":{"29329_0":null,"29334_0":null,"29339_0":null,"29327_0":null,"29330_0":null,"29335_0":null,"29340_0":null,"27928_0":null,"29331_0":null,"29336_0":null,"29341_0":null,"29325_0":null,"29332_0":null,"29337_0":null,"29342_0":null,"29326_0":null,"29333_0":null,"29338_0":null,"29343_0":null,"29328_0":null,"29344_0":null,"29345_0":null},"active_ids":{"one_29329":["0"],"two_0":["29329","29334","29339","29327","29330","29335","29340","27928","29331","29336","29341","29325","29332","29337","29342","29326","29333","29338","29343","29328","29344","29345"],"one_29334":["0"],"one_29339":["0"],"one_29327":["0"],"one_29330":["0"],"one_29335":["0"],"one_29340":["0"],"one_27928":["0"],"one_29331":["0"],"one_29336":["0"],"one_29341":["0"],"one_29325":["0"],"one_29332":["0"],"one_29337":["0"],"one_29342":["0"],"one_29326":["0"],"one_29333":["0"],"one_29338":["0"],"one_29343":["0"],"one_29328":["0"],"one_29344":["0"],"one_29345":["0"]},"variant_informations":[],"variant_stocks":{"29329_0":"100","29334_0":"100","29339_0":"100","29327_0":"100","29330_0":"100","29335_0":"100","29340_0":"100","27928_0":"100","29331_0":"100","29336_0":"100","29341_0":"100","29325_0":"100","29332_0":"100","29337_0":"100","29342_0":"100","29326_0":"100","29333_0":"100","29338_0":"100","29343_0":"100","29328_0":"100","29344_0":"100","29345_0":"100"}}

Seçiniz

Adet:

Teklif Al

Planlanan Teslimat

1 - 5 İş Günü

Tavsiye Et Yorum Ekle Fiyat Alarmı Alışveriş Listeme Ekle

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Tavsiye Et
Resimler
Öneri Kutusu

Alın Kamalı Malafa DIN 6357 (Form ADB) 2

Teslim Şekli : Alın civatası (Ø 60 hariç) ve kaması ile birlikte * d= Ø40 (M12) , d= Ø60 , (M16) , d= Ø50 (M16) DIN 2079' a uygun ilave 4 vida bağlantılı

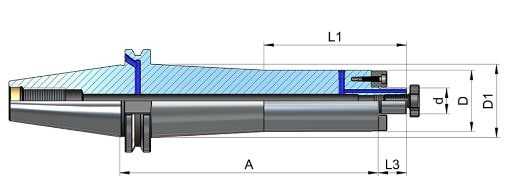

SİPARİŞ NO	SK	d	A	D	D1	L1	L3
503.11.16.35	SK 50	16	35	38	-	-	17
503.11.16.100	SK 50	16	100	38	-	-	17
503.11.16.130	SK 50	16	130	38	-	-	17
503.11.16.160	SK 50	16	160	38	44.5	88	17
503.11.22.35	SK 50	22	35	48	-	-	19
503.11.22.100	SK 50	22	100	48	-	-	19
503.11.22.130	SK 50	22	130	48	-	-	19
503.11.22.160	SK 50	22	160	48	55	88	19
503.11.27.40	SK 50	27	40	60	-	-	21
503.11.27.100	SK 50	27	100	60	-	-	21
503.11.27.130	SK 50	27	130	60	-	-	21
503.11.27.160	SK 50	27	160	60	67.5	88	21
503.11.32.50	SK 50	32	50	78	-	-	24
503.11.32.100	SK 50	32	100	78	-	-	24
503.11.32.130	SK 50	32	130	78	-	-	24
503.11.32.160	SK 50	32	160	78	-	-	24
*503.11.40.50	SK 50	40	50	88	-	-	27
*503.11.40.100	SK 50	40	100	88	-	-	27
*503.11.40.130	SK 50	40	130	88	-	-	27
*503.11.40.160	SK 50	40	160	88	-	-	27
*503.11.50.70	SK 50	50	70	118	-	-	30
*503.11.60.70	SK 50	60	70	128	-	-	40
